Wire gauge size is crucial in both automotive and marine applications due to the specific challenges presented by these environments.
Here’s why it is important:
- Electrical Efficiency
-

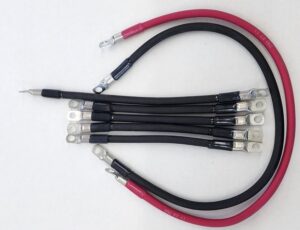

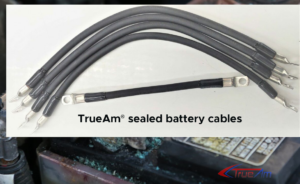

True® 7 Piece Complete Battery Cable kit – 4 AWG Lower Resistance: Thicker wires (lower gauge numbers) have reduced electrical resistance, facilitating better current flow and minimizing voltage drop.
- Consistent Performance: This is vital for systems such as lighting, pumps, ignition, and navigation electronics, which depend on stable voltage.
2. Safety
- Prevents Overheating: Wires that are too small for their current load can overheat, creating fire hazards—particularly in cramped engine compartments or below-deck areas.
- Proper Fuse Pairing: Using the correct gauge ensures that fuses blow before wires reach dangerous temperatures.
3. Environmental Durability
- Marine Corrosion Resistance: Marine applications often require tinned copper wires in suitable gauges to prevent corrosion and maintain conductivity in moist, salty conditions.
-
Can-Am Viper UTV Winch Automotive Wear and Tear: Wires must endure vibration, heat, oil exposure, and abrasion; undersized wires fail more quickly under these stresses.
- Power-Hungry Devices
- High-Current Accessories: Devices like winches, amplifiers, bilge pumps, and inverters require substantial current, necessitating heavier-gauge wiring for safe and efficient operation.
- Battery-to-Device Distances: Longer cable runs need larger wires to minimize voltage drop.
- Compliance and Standards
- Regulatory Guidelines: Organizations such as the ABYC for marine and SAE for automotive establish standards for proper wire sizing. Adhering to these guidelines ensures insurance validity and operational safety.
In summary, wire gauge size is more than just a number—it’s essential for the safety, reliability, and performance of your system.
Recommended Wire Gauge for Automotive or Marine Application
The appropriate gauge wire size for automotive, UTVs, RVs, and marine applications depends on the current (amps), voltage (12V/24V), and wire length. A 4 AWG copper wire is commonly used for 100–125 amps over short distances (under 10 feet) in automotive applications like dual battery kits.
If the run is over 20-30 feet like UV and large Trucks, consider stepping up to 2 AWG to minimize voltage drop.
General Ampacity Ratings for 4 Gauge Wire:
- 85 to 95 amps — in typical chassis wiring (based on NEC 310 guidelines for copper wire with 75°C insulation).
- Up to 125 amps — for short runs or in free air with good ventilation.
- 150 amps max — in automotive or marine applications with very short lengths and proper insulation.
Factors Affecting Ampacity:
- Wire material (Copper vs. Aluminum)
- Length of the wire (longer runs reduce ampacity due to voltage drop)
- Insulation rating (60°C, 75°C, 90°C, etc.)
- Whether the wire is in conduit, in free air, or bundled.
Recommended Wire Gauge by Application
Automotive Applications (Cars, Trucks)
-

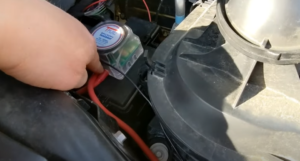

Truck Dual Battery Isolator Setup 16-18 AWG: Lighting, accessories, sensors (up to 10A short runs)
- 14 AWG: Mid-power items (15A circuits like horns, small compressors)
- 12 AWG: High-powered accessories (20-25A like amplifiers, heated seats)
- 10 AWG: Power-hungry devices (30-40A, winches, inverters)
- 8 AWG: Secondary batteries, amplifiers (up to 50-60A)
- 4 AWG: Dual battery setups, larger inverters (up to 100-125A)
- 2-0 AWG (2, 1/0, 2/0): Starter motors, winches, high-output alternators (150-300A
UTVs and Side-by-Sides (12V/24V Systems)
-

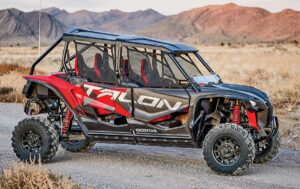

Honda Talon Dual Battery Setup 16-14 AWG: Lighting, GPS, small accessories
- 12 AWG: Accessories like sound bars, light bars (20-25A)
- 10 AWG: Winches, pumps, heaters (30-40A)
- 8 AWG: Small dual battery systems or moderate loads (50A)
- 4 AWG: Heavy dual batteries, large winches, inverters (100-125A)
- 2 AWG: Very large winches, sound systems, or extended runs
Marine Applications (Saltwater & Freshwater Boats)
- 14-12 AWG: Bilge pumps, nav lights, small electronics (15-20A)
- 10 AWG: Windlass, medium pumps, fridges (30-40A)
- 8 AWG: Longer accessory runs, moderate loads (50A)
- 4 AWG: Battery interconnects, DC panels, large pumps (100-125A) which is best for dual battery isolator setup.
- 2 AWG & Larger (1/0, 2/0, 4/0): Inverters, starter motors, windlass, thrusters (150-400A)
General guidelines:
✅ Marine Grade Note: Use tinned copper marine-grade wire for corrosion resistance.
✅The longer the wire, the thicker (lower gauge) it needs to be to avoid voltage drop, especially at 12V or 24V.
✅Less than 10 ft run a smaller wire gauge is acceptable.
✅10-20ft: Step up one gauge size
✅Over 20ft: Go two sizes bigger for safety and voltage stability
✅ AWG stands for American Wire Gauge, which is a standardized system used in the United States (and many other countries) to measure the diameter (thickness) of round, solid, electrically conducting wires.
How American Wire Gauge Works?
The smaller the AWG number, the thicker the wire. For example, the 4 AWG equal to Thick wire (handles high amps like 100-150A). The larger the AWG number, the thinner the wire. For example, 16 AWG = Thin wire (used for lights, small electronics up to 10A)
